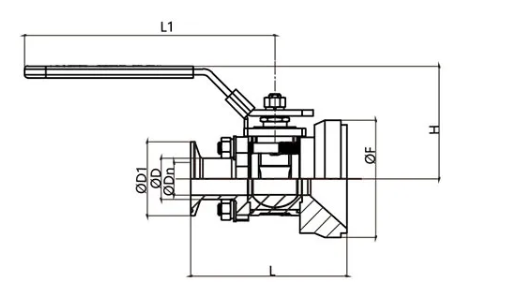

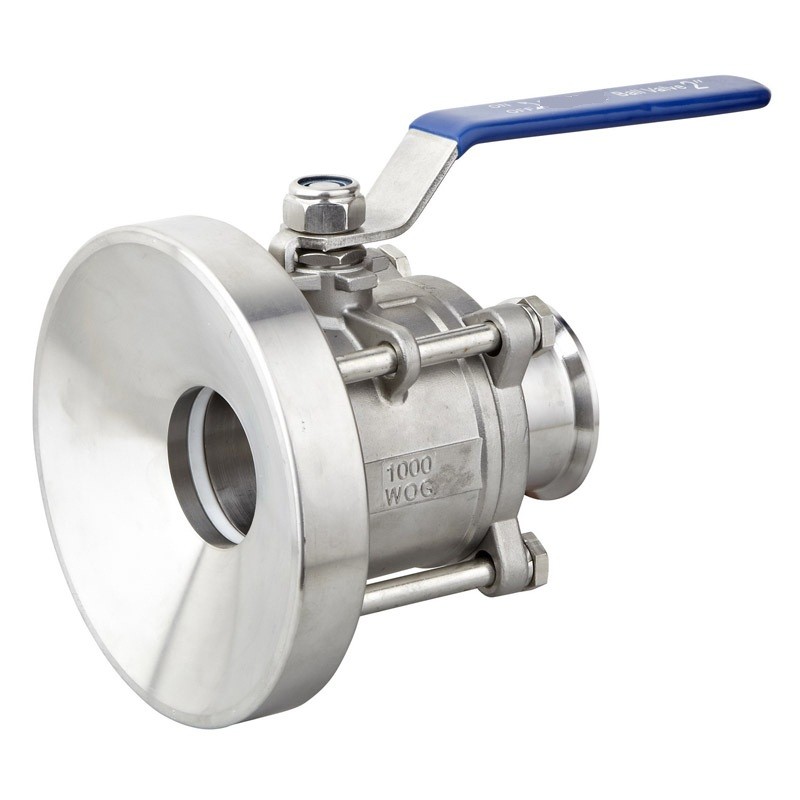

3 Pcs Bottom Ball Valve

This ball valve with special tank bottom flange connection,be welded on the tank bottom The design of contour andradiushave effective gravity discharge function. Also smoothtaper hole and the sphere closely to the bottom whichprevent the medium from staying at the entrance of valve.Malke sure drain smoothly.

Product Description:

Nominal Diameter	DN (mm)	20~150
Nominal Pressure	PN (MPa)	1.6	2.5	4.0	6.4
Test Pressure	Strength Pressure Test (mpa)	2.4	3.8	6.0	9.6
	Hydraulic Seal Pressure Test (mpa)	1.9	3.0	4.8	7.6
	Pneumatic Seal Pressure Test (mpa)	0.6	0.6	0.6	0.6
Suitable Medium	Liquids
Suitable Temperature Range	-20~150°C (PTFE), -20~232°C (PPL)
Connection Method	Clamp/Thread/Welded/Flanged
Standards	DIN, API,ANSI, ASTM, JIS, EN, BS, GB
Actuation Method	Manual, Pneumatic, Electric
Ball or Valve Stem	304,316
Valve Body and Valve Cover	WCB,CF8,CF8M,CF3
