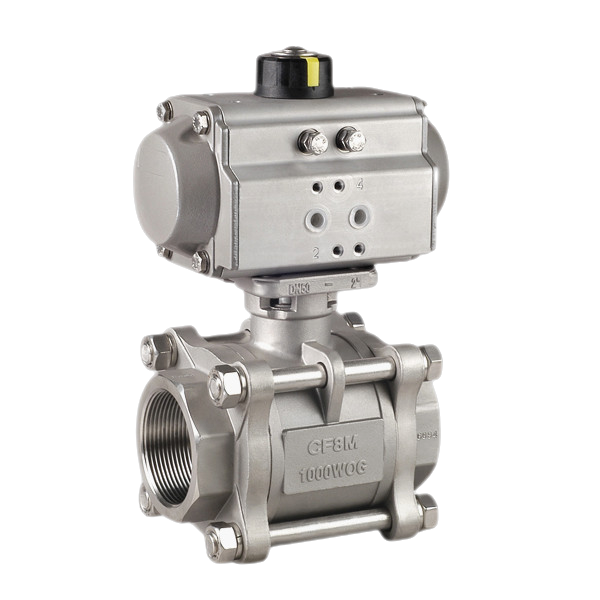

The Q611F pneumatic three-piece threaded ball valve is also known as a pneumatic threaded ball valve.
Nominal Diameter | DN (mm) | 8~100 | ||||||
Nominal Pressure | PN (MPa) | 1.6 | 2.5 | 4.0 | 6.4 | |||
Test Pressure | Strength Pressure Test (mpa) | 2.4 | 3.8 | 6.0 | 9.6 | |||
Hydraulic Seal Pressure Test (mpa) | 1.9 | 3.0 | 4.8 | 7.6 | ||||
Pneumatic Seal Pressure Test (mpa) | 0.6 | 0.6 | 0.6 | 0.6 | ||||
Suitable Medium | Water, Oil, Gas, and Certain Corrosive Liquids | |||||||
Suitable Temperature Range | -20~150°C (PTFE), -20~232°C (PPL) | |||||||
Connection Method | Threaded Connection | |||||||
Thread Type | NPT, BSPT, BSP, DIN | |||||||
Actuation Method | Pneumatic | |||||||
Ball or Valve Stem | 304,316 | |||||||
Valve Body and Valve Cover | WCB, CF8, CF8M |
Royal Valve Pressure Test
precautions to be taken during the assembly and
